G-NiceRF Lora1276 LoraWAN Gateway sx1276 sx1301 868 915MHz LoRa transceiver Sensor modules

FOB Reference Price:Get Latest Price
  • 2 - 99
    US $7.50
  • >=100
    US $5.50
Supply Ability:
50000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NiceRF
Model Number:
Lora1276 lora module
Maximum output power:
20dBm
Sensitivity:
up to -139 dBm
Frequency Range:
315/433/470/868/915MHz
receiver mode:
10.3mA
Sleep current:
<200nA
Data transfer rate:
FSK,1.2-300kbps
Modulation mode:
Lora TM ,FSK,GFSK and OOK
Power supply:
1.8-3.7 V
Packet engine:
up to 256 bytes with CRC
Product name:
LoRa module LoRa1276
Packaging & Delivery
Packaging Details
standard package
Delivery Time
1~7days



NiceRF Lora1276 LoraWAN Gateway sx1276 868 915MHz LoRa transceiver Sensor modules



Product Description



LoRa1276 adopts Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.



Comparing with V1.1 version, V2.0 version has been updated as below:

1) Adopted official circuit of Semtech.

2) Cancelled Txen, Rxen pins.

3) Added ESD for electrostatic prevention.

4) Smaller current.



Lora1276 got FCC approval at 915MHz,  FCC ID: 2AD66-LORAV2







Features:

  • Frequency Range: 868/915MHz (Customizable 137-1020 MHZ)
  • Sensitivity up to -139 dBm
  • Maximum output power: 20dBm
  • 10.3mA@receiver mode
  • Sleep current <200nA
  • Data transfer rate:@FSK,1.2-300kbps
  • @Lora TM,0.018-37.5kbps
  • Lora TM ,FSK,GFSK and OOK Modulation mode
  • 1.8-3.7 V Power supply
  • 127 dB Dynamic Range RSSI
  • Packet engine up to 256 bytes with CRC
  • Operating Temperature Range:-40 ~ + 85 °C
  • Built-in temperature sensor and low battery indicator
  • Excellent blocking immunity


Application:

  • Remote control
  • Remote meter reading
  • Home security alarm and remote keyless entry
  • industrial control
  • home automation remote sensing
  • individual data records
  • toys control
  • sensor network
  • tire pressure monitoring
  • health monitoring
  • wireless PC peripherals
  • tag reading and writing





Specifications:

Product name: 100mW SX1276 LoRa Module Lora1276

ParameterMinTyp MaxUniteCondition
Working condition
Working voltage range1.83.33.7V
Temperature voltage-40 85
Current consumption
RX current 10.8 mAHigh performance mode
TX current 100 mA@20dBm
Sleep current <0.2 uA
parameter
Frequency range403433463MHZ@433MHZ
838868898MHZ@868MHZ
Modulation rate1.2 300KbpsFSK
0.018 37.5KbpsLoraTM
Output power range-1 20dBm
Receiving sensitivity -123 dBm@FSK data=1.2kbps,Fdev=10kHZ
 -139  @Lora BW=125KHz_SF = 12_CR=4/5









Schematic:







Pin configuration:









Pin NO.Pin nameDescription
1GNDpower ground
2TXENAntenna switch control,
Tx: Txen =1, Rxen =0;
Rx: Txen = 0, Rxen = 1;
3RXENSleep : Txen = Rxen = 0
4SCKSerial clock for SPI interface
5MISOSerial MISO for SPI interface
6MOSISerial MOSI for SPI interface
7NSSSPI enable
8DIO2Digital I/O
9DIO1Digital I/O
10DIO0Digital I/O
11VCCPositive power supply 3.3V
12NRESETReset input
13ANTConnect with 50 ohm coaxial antenna
14GNDpower ground

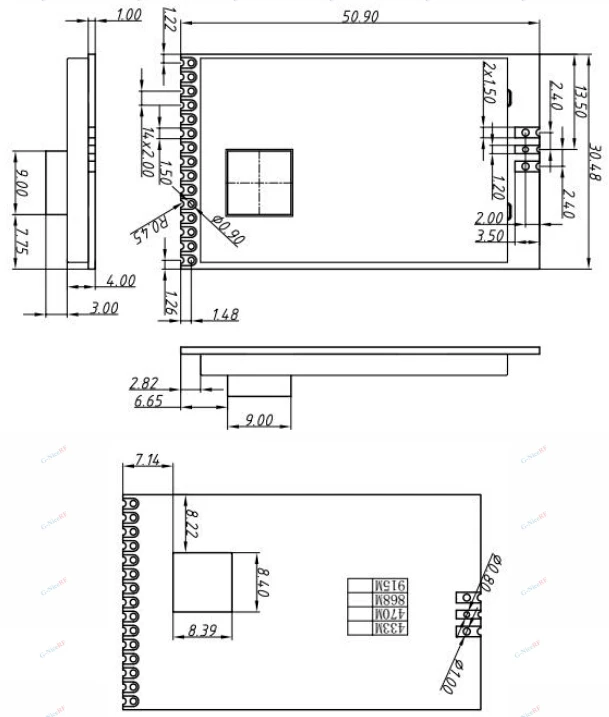

Machanism dimensions:







Products Ordering Information:







 915MHz 100mW LoRa module LoRa1276 with sx1276 & FCC
