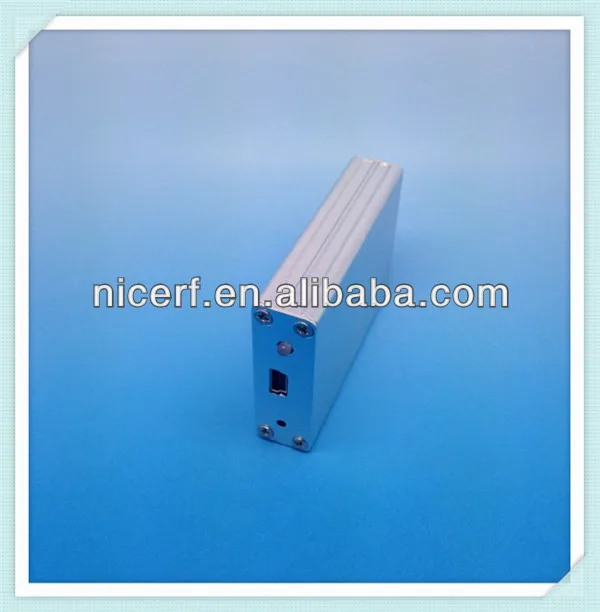

433/470/868/915mhz Wireless Data Transmitter & Receiver RF Module SN613
SN613 is highly integrated, USB port network node module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 500mW output power to ensure longer RF range and high link quality. SN613 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SN613 wildly deployed in many fields and applications.
Air data rate
Setting by software
Feature: *3000m RF line-in-sight distance @ 1.2kbps *433/470/868/915 MHz *40 channels *4 bytes net ID *2 bytes node ID *Multiple air data rate *GFSK modulation *Antenna match automatically and bi-direction switch control *Support Serial port parameter setting *USB port *Sensitivity: -121 dBm *Max output power:500 mW *Voltage:4.5 ~ 5.5 V *Temperature:-40 ~ +85 °C
Application: *Remote telemetry *Auto meter reading *Security systems *Data logger *Wireless data communication *Building residential automation and security *Healthy monitoring *Wireless PC peripherals *Access Control System *Robot control
Antenna: It is an important part of communication system. Its performance directly affect the indicators of communication system.This module SN613 requires the antenna impedance as 50 ohm. To make the module in the best working status, we recommend that users use our company's antenna!
USB Bridge Board: Modules need to match relevant parameter,transmit data...etc, with PC.(you can choose configuration mode by wire jumper).
