G-NiceRF Four Channel Wireless Switch Remote Controller SK108U 3Km Transmitter Distance Transceiver Module Remote Controls

FOB Reference Price:Get Latest Price
US $50-52 / Pieces | 2 Piece/Pieces Remote Controls (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
G-NiceRF
Model Number:
SK108U wireless switch Remote Controls
Function:
Remote control wireless switch
Transceiver range:
3KM long range rf transmitter and receiver
Frequency Range:
433/470/868/915 MHz
Sensitivity:
-121 dBm
Maximum output power:
1W
Channels:
16
Working Voltage:
9 ~ 18 V
Output power:
30dBm
Temperature Range:
-40 ~ + 85 °C
Switch control:
Two way switch control
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month Remote Controls
Packaging & Delivery
Packaging Details
Poly bag to pack into bubble bag, then delivery within yellow nertral box
Port
Shenzhen
Lead Time :
Sample order in 3 days; bulk order within 15 days

Four Channel Wireless Switch Remote Controller SK108U 3Km Transmitter Distance Transceiver Module Remote Controls







Here is the Order List:
  • 2PCS SK108-433MHz RF Modules
  • 2PCS SW433-XP1M Antennas
  • If you need other frequency, please leave a massgae to confirm with us when you plance order :) otherwise, we will send 433MHz.

Product Description



SK108 is a industrial four channel wireless switch controller, it provides maximum four channel signal input and maximum four channel control output. It features simple interface and reliable performance. The parameters can be modified by PC software / UART command / remote controller (SK108-S). DIP switch on the module can used to change operating frequency (maximum 16 group), operation mode etc. Using this module, user can replace wired device with the wireless connection, which significantly reduce the cost and save much time.





Features

  • Up to 3Km line-of-sight in open area
  • Frequency Band : 433 ,470,868,915MHz(Optional)
  • 16 predefined channels
  • Parameters configurable by PC software/ Remote controller/ UART Command
  • Real-time/Timing working mode for optional
  • Bi-directional wireless switch control
  • Sensitivity up to 121 dBm
  • Maximum output power: 1 W
  • Indicate and alarm when battery low
  • Working voltage 9 ~ 30 V
  • Working temperature range: - 40 ~ + 85 ° C
  • Weight: 143g





Application

  • Remote control switch control
  • Security system
  • Home automation remote sensing
  • Wireless remote telemetry
  • Building automation and security
  • Access control system

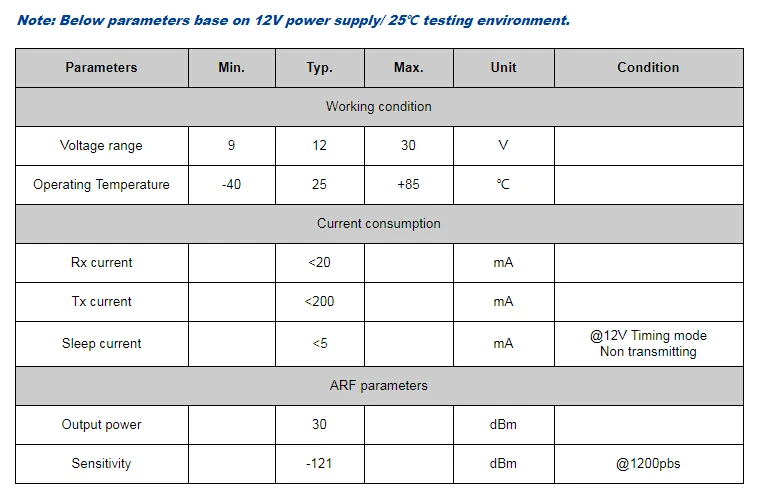

Electronic parameters

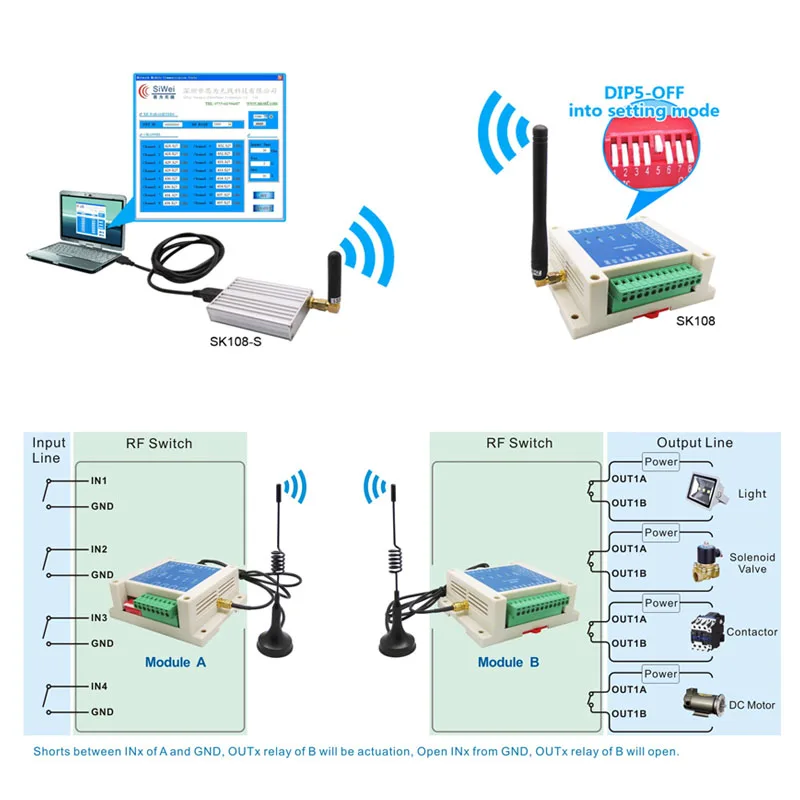

Application Connection


The input port is pulled up internally, leave open or connect with 3.3V will result in high level, it is low level when connect to GND.
High level will make the output of the other side short out. And low level will make the output of the other side open. Below is regular connection

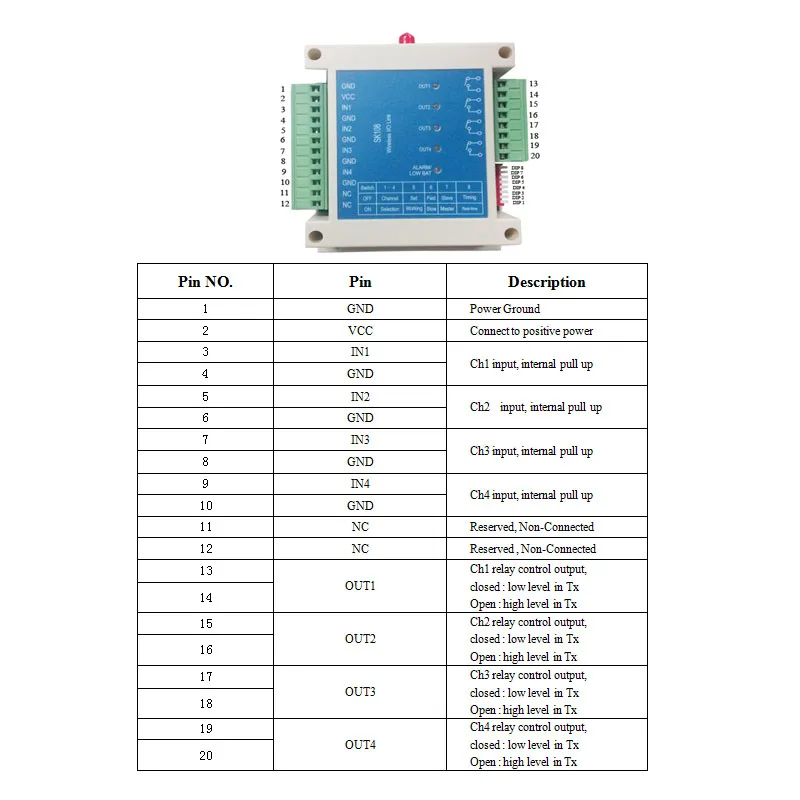

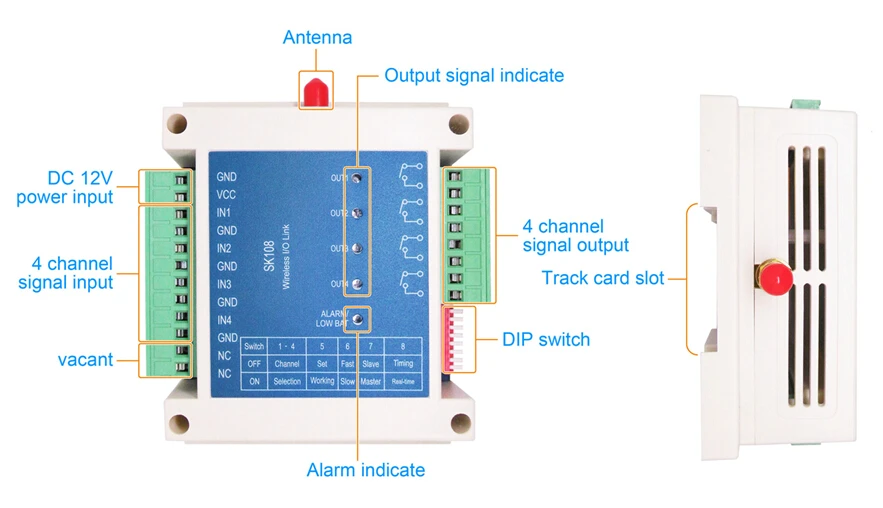

Pin definition

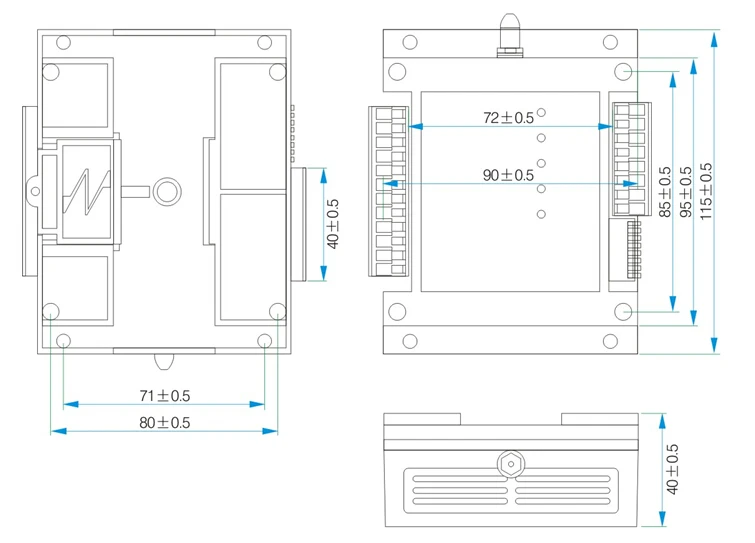

Mechanical dimension
