G-NiceRF 3km Long Range 433/470/868/915MHz Wireless Transmitter & Receiver RF Module SN651

FOB Reference Price:Get Latest Price
US $27-30 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
SN651
Brand Name:
G-NiceRF
Place of Origin:
Guangdong, China (Mainland)
Interface:
TTL/RS/232/RS485
Operating frequency:
433/470/868/915MHz (others can be customizable)
Receiving sensitivity:
-121dBm
Operating voltage:
2.8~6.5V/4.5~5.5V
Sleep current:
<5uA
TX current:
350mA @ 27dBm
RX current:
25mA(TTL)/ 34mA(485)
Power:
-1~20dBm
Size:
50.4*39*7.6
Transceiver distance:
3km
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package: each pcs into a poly bag;
Size of packing box: 25*18*10cm
Port
Shenzhen
Lead Time :
3~5 days after receiving the full payment







Product Description





3km Long Range 433/470/868/915MHz Wireless Transmitter & Receiver RF Module SN651





SN651 is highly integrated, medium power network node module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 500mW output power to ensure longer RF range and high link quality. SN651 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SN651 wildly deployed in many fields and applications.

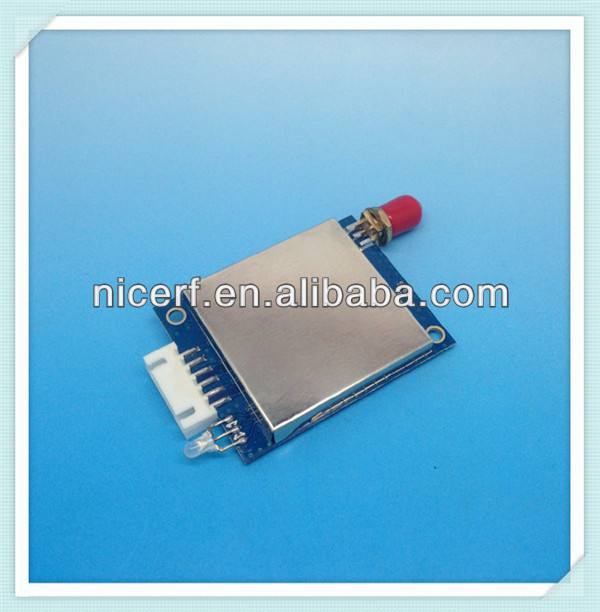

Product Picture:

 sv651 001_.jpg

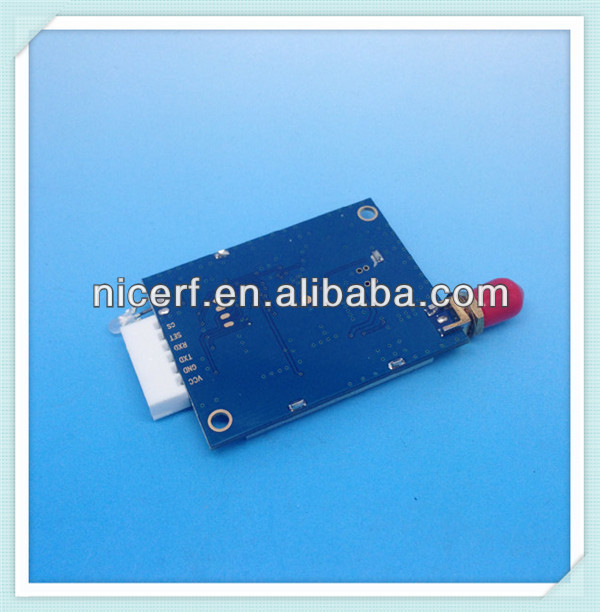

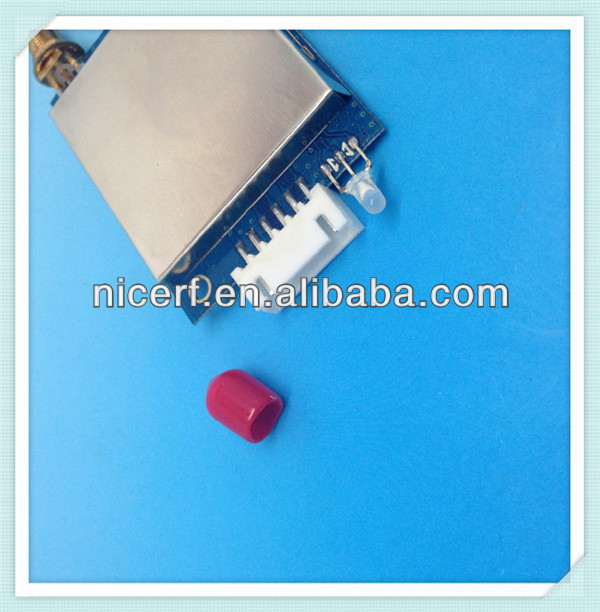

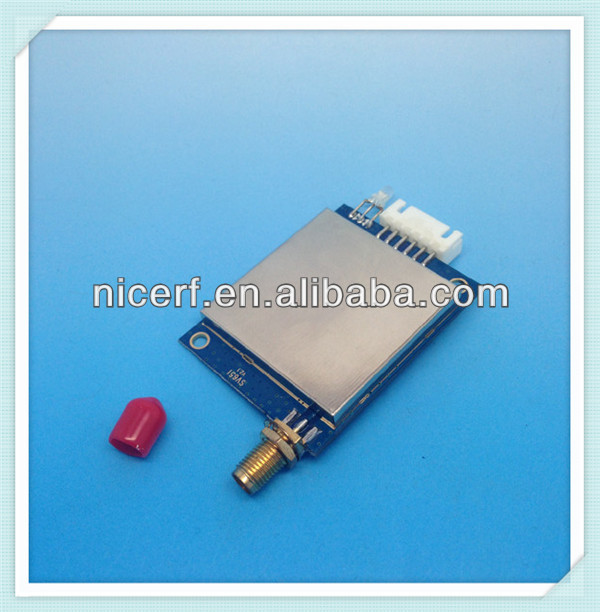

Detail Pictures:

 sv651 002_.jpgsv651 003_.jpgsv651 004_.jpg









Electronic Specifications:



Parameter

Min.

Typ.

Max.

Unit

Conditions

Operation conditions

Supply Voltage

2.8

5.0

6.0

V

TTL level

4.5

5.0

5.5

V

232/485 level

Operating

Temperature

-40

25

+85

°C



Current consumption

RX Current



25



mA

TTL level



34



mA

485 level



32.7



mA

232 level

TX current



350



mA

@20dBm

Sleep Current



≤5



uA

@TTL level

RF parameters

Frequency

414.92

433.92

453.92

MHZ

@433MHZ

470.92

470.92

509.92

MHZ

@470MHZ

849.92

868.92

888.92

MHZ

@868MHZ

895.92

914.92

934.92

MHZ

@915MHZ

Air data rate

1.2

9.6

38.4

Kbps

GFSK

Output power

20

/

27

dBm

Setting by software

Sensitivity



-121



dBm

@1.2kbps







Feature:
*3000m RF line-in-sight
distance @ 1.2kbps
*433/470/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*Antenna match automatically and bi-direction switch control
*Support Serial port parameter setting
*Sensitivity: -121 dBm
*Max output power:500 mW
*Voltage:2.8 ~ 6.0 V
*Temperature:-40 ~ +85 °C



Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control

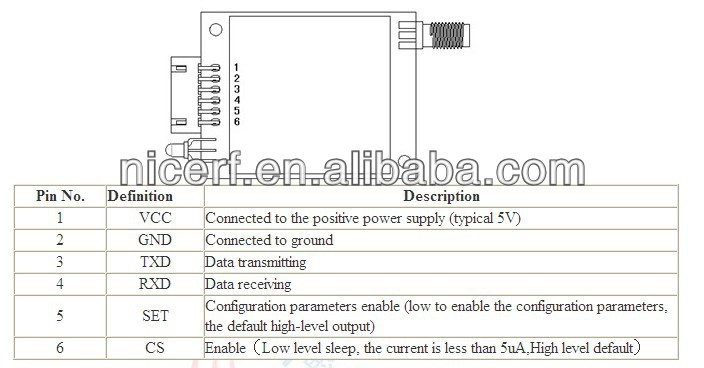

Pinout:

 snr651 pinout.jpg





Machine Dimensions:

 snr651 size.jpg







Accessories:

Antenna:

 snr651 antenna.jpg







USB Bridge Board:  sv651 interface.jpg
