SR652-Wireless Transceiver 3KM RF Medium Power Network Node Module

FOB Reference Price:Get Latest Price
US $35-40 / Piece | 2 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shenzhen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NiceRF
Model Number:
SR652-Network Node Module
Interface:
TTL/RS232/485
Operating frequency:
433/470/868/915MHz (others can be customizable)
Receiving sensitivity:
-121dBm
Operating voltage:
2.8~6.5V/4.5~5.5V
Sleep current:
<5uA
TX current:
350mA @ 27dBm
RX current:
25mA(TTL)/32.7mA(232)/ 34mA(485)
Power:
20~27dBm
Size:
62.5*43.2*14.3
Distance:
3km
Packaging & Delivery
Packaging Details
Package: each pcs into a poly bag;
Size: 62.5*43.2*14.3
Delivery Time
3~5 days after receiving the full payment

SR652-Wireless Transceiver 3KM RF Medium Power Network Node Module






Product Description



 SR652 is highly integrated, medium power network node module. It adopts high performance Silicon Lab Si4432 RF chip. Si4432 has low reception sensitivity and 500mW output power to ensure longer RF range and high link quality. SR652 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make SR652 wildly deployed in many fields and applications.









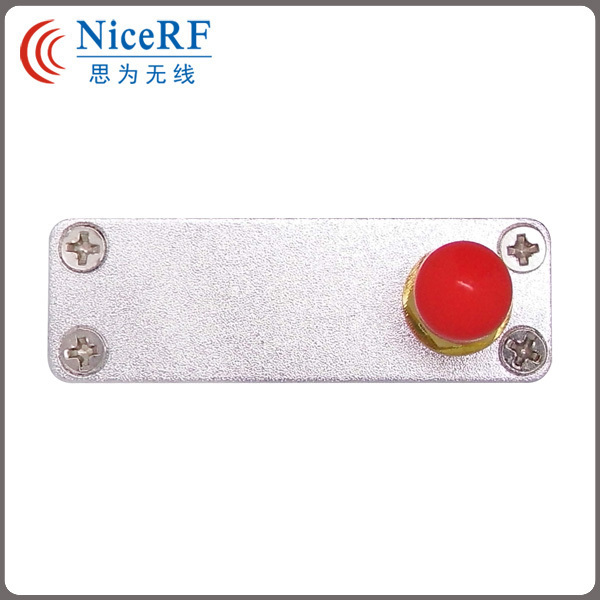

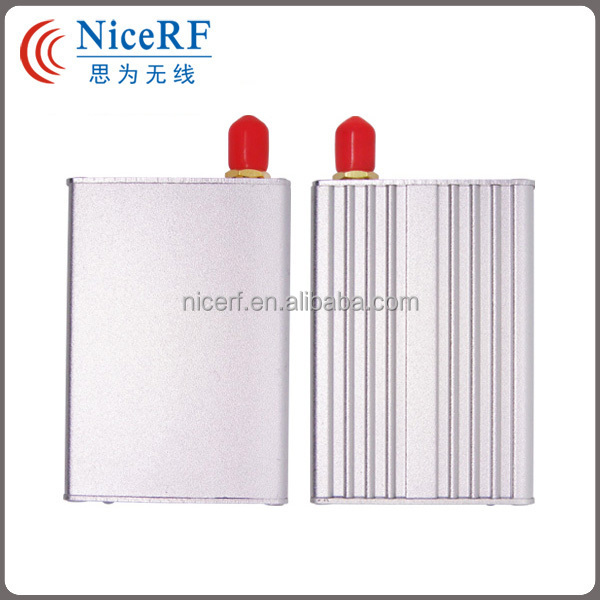

Detail Pictures:











Electronic Specifications:



Parameter

Min.

Typ.

Max.

Unit

Conditions

Operation conditions

Supply Voltage

2.8

5.0

6.0

V

TTL level

4.5

5.0

5.5

V

232/485 level

Operating

Temperature

-40

25

+85

°C



Current consumption

RX Current



25



mA

TTL level



34



mA

485 level



32.7



mA

232 level

TX current



350



mA

@20dBm

Sleep Current



≤5



uA

@TTL level

RF parameters

Frequency

414.92

433.92

453.92

MHZ

@433MHZ

470.92

470.92

509.92

MHZ

@470MHZ

849.92

868.92

888.92

MHZ

@868MHZ

895.92

914.92

934.92

MHZ

@915MHZ

Air data rate

1.2

9.6

38.4

Kbps

GFSK

Output power

20

/

27

dBm

Setting by software

Sensitivity



-121



dBm

@1.2kbps







Feature:
*3000m RF line-in-sight
distance @ 1.2kbps
*433/470/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*Antenna match automatically and bi-direction switch control
*Support Serial port parameter setting
*Sensitivity: -121 dBm
*Max output power:500 mW
*Voltage:4.5 ~ 6.5 V
*Temperature:-40 ~ +85 °C


Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control









Machine Dimensions:

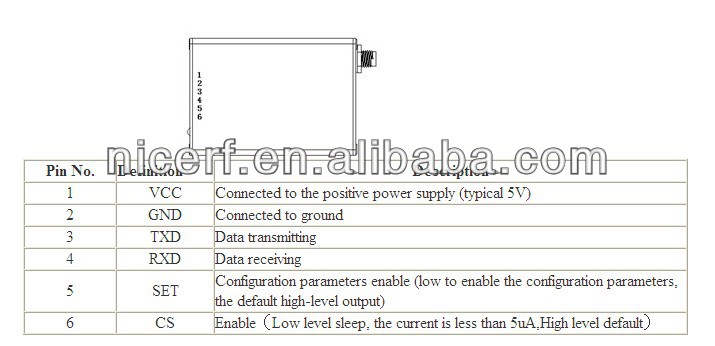

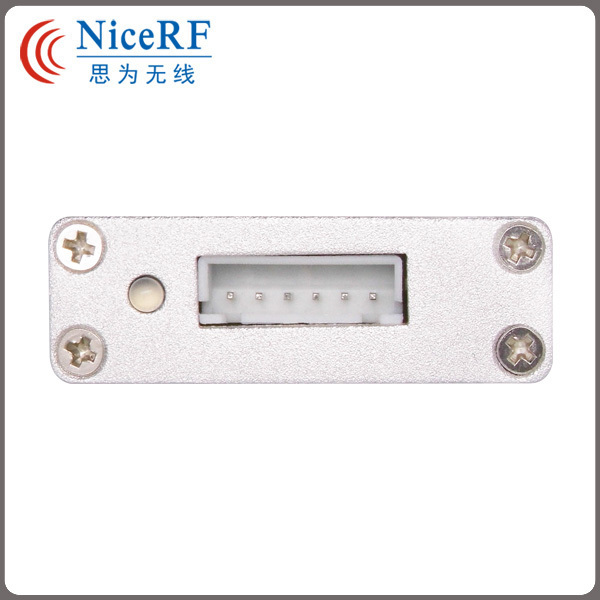

Pinout:









Accessories:

Antenna: It is an important part of communication system. Its performance directly affect the indicators of      communication system.This module SR652 requires the  antenna impedance as 50 ohm. To make the module in the best working status, we recommend that users use our company's antenna!











USB Bridge Board: Modules need to match relevant parameter,transmit data...etc, with PC.(you can choose configuration mode by wire jumper).
